Coastal Bottom Rolling Sliders do not require structural fixing at the top as all the weight is on the bottom track. They are easy to operate, particularly with larger doors.

Louvretec Coastal Sliders are engineered to function in the toughest of environments & are crafted from industrial-grade powder coated or anodised aluminum.

Generally installed outside the building, deck, or within a pre-prepared opening. Sliding louvre shutters have top and bottom tracks and guides so you can enjoy indoor outdoor flow and protection from the elements.

Two Choices of Bottom Rolling Sliders

Two Choices of Bottom Rolling Sliders

Coastal 80 Bottom Rolling Sliders; Designed for windows and door panels weighing up to a maximum finished panel weight of up to 80kg.

Typically allow between 12kg - 14kg per sqm when calculating weight of
slider.

Coastal 200 Bottom Rolling Sliders; Designed for windows and door panels weighing up to a maximum finished panel weight of up to 200kg.

Typically allow between 12kg-14kg per sqm when calculating weight of slider.

SEE LOUVRE INFILL OPTIONS
Maximum Wind Span Coastal 80 Bottom Rolling Slider

Maximum Wind Span Coastal 80 Bottom Rolling Slider

Maximum Wind Span Coastal 80 Bottom Rolling Slider

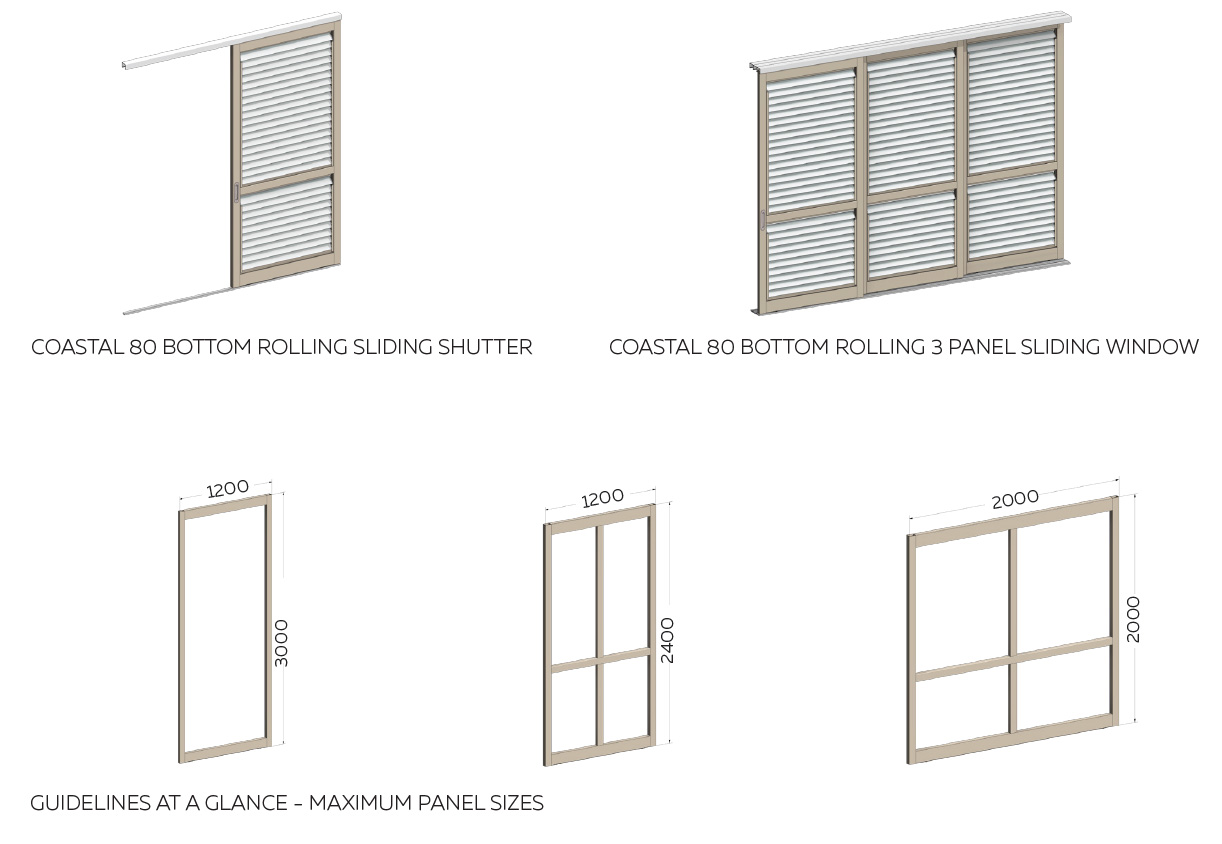

Coastal 80 Bottom Rolling Sliders Max. Measures



Maximum Wind Span Coastal 200 Bottom Rolling Slider

Maximum Wind Span Coastal 200 Bottom Rolling Slider

Maximum Wind Span Coastal 200 Bottom Rolling Slider

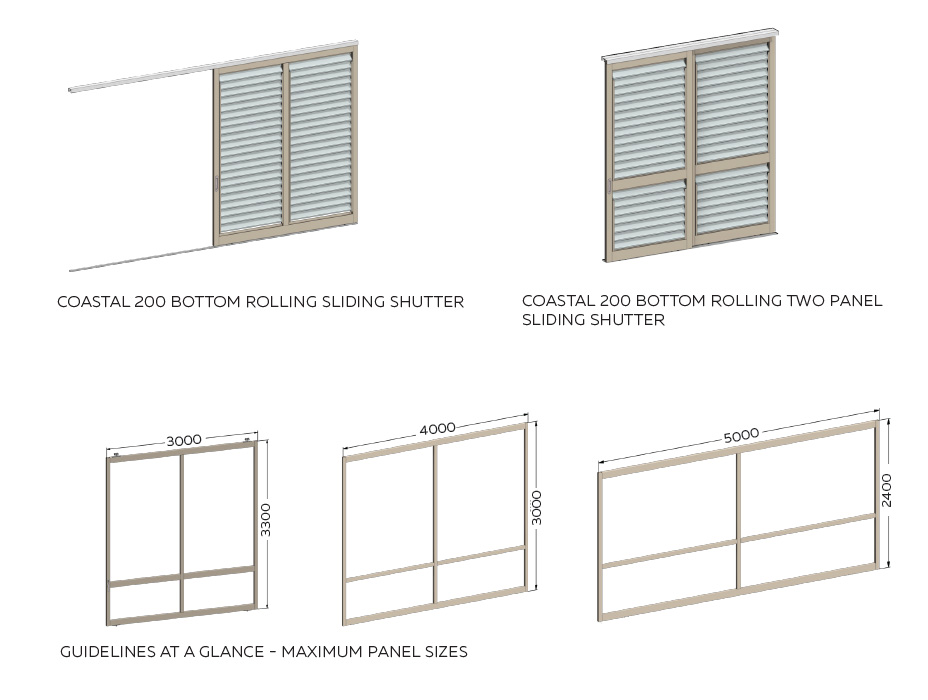

Coastal 200 Bottom Rolling Sliders Max. Measures



Full Range
90mm Midi Louvres - hand adjustable
90mm Midi Louvre

90mm Midi Louvre

The 90mm Midi Louvre is the smallest louvre in this range.
150mm Midi Louvres
150mm Midi Louvre

150mm Midi Louvre

A highly versatile, mid-sized Louvre.
95 Bella Vista Lite Louvres
95 Bella Vista Louvre

95 Bella Vista Louvre

Introducing our smallest Rectangular Sun Louvre.
95 Bella Vista Heavy as a Slider
95 Bella Vista Heavy Louvre

95 Bella Vista Heavy Louvre

Bella Vista's Heavy Duty Louvre is perfect for larger, exposed sites and is Hand Operable.
120 airfoil
120mm Airfoil Louvre

120mm Airfoil Louvre

One of our most specified Airfoil Louvres
125 Weatherboards
125 Weatherboard Panel

125 Weatherboard Panel

Aluminum Weatherboard-look Louvres that are 125mm wide bringing a sleek & modern design.
Helena Bay
150 Helena Bay Louvre

150 Helena Bay Louvre

With excellent spanning capabilities, the 150 Helena Bay Louvre is designed to be End Fixed or Bracket Fixed.
  • Bottom Rolling Sliders do not require structural fixing at the top as all the weight is on the bottom track
  • Two wheels on the bottom track support the door's weight while the top track serves as a guide
  • Easy to operate, particularly with larger doors
  • View Full Range tab to view compatible louvre infills for Coastal Top Hung Sliding Shutters
  • These Louvre infills for Coastal Bottom Rolling Sliders can be Hand Operable (90mm Midi, 150mm Midi, 95 Bella Vista, 95 Bella Vista Heavy Louvres)
  • These Louvre infills for Coastal Bottom Rolling Sliders can be End Fixed (90mm Midi, 150mm Midi, 95 Bella Vista, 95 Bella Vista Heavy, 120 Airfoil, 125 Weatherboard, 150 Helena Bay Louvres)
  • Made of aluminium
  • Made for coastal living
  • Durable
  • Available in many powdercoat colours
  • Available in anodised finishes
  • Available in wood grain finishes and other special finishes
  • Engineered
  • Warranty
  • Creates a fine line between indoor and outdoor
  • Privacy and weather protection
  • Stylish good looks!
