Louvretec's Bifolding Coastal 100 Bifold Doors are Top Hung and designed to elevate the look and feel of any space.

Because Bifold Panels stack back on each other they can open up walls, maximising space & your indoor-outdoor flow.

Enhance your space with Coastal 100 Bifolding Doors and Shutters today.





Discover more

Discover more

  • Coastal 100 Bifolding Shutters are designed for Windows and Door Panels weighing up to a maximum finished panel weight of up to 100kg
  • Typically allow 15kg per sqm when calculating weight of a Bifold panel
  • Maximum Panel size is 3300mm (h) x 900mm (w)
  • Coastal 100 Bifolding Shutters are Top Hung & as multi-panel Bifolds can load considerable weight to the Top Track, suitable fixing at the head is essential. Please contact Louvretec for specific weight loadings
  • A Transom is standard
  • Louvre infills can be Hand Operable or Fixed in place
  • See following for configuration options

Coastal Bifolding Shutters make an excellent connection to outdoor living.

SEE BIFOLD LOUVRE INFILL OPTIONS

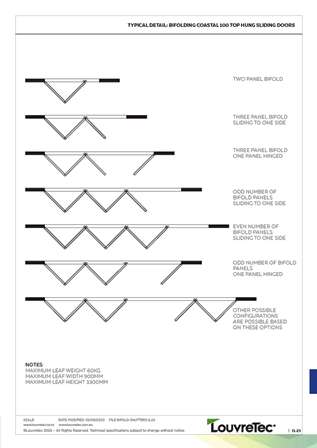

Bifold configurations

Bifold configurations

It's important to choose the right number of Panels (Leafs) when configuring your Bifold doors.

Please refer to the chart below to view the available configuration options. If the configuration you had in mind is not shown your local Louvretec Sales team will explore other possible configurations with you, based on the following:

Bifold Configurations



SEE BIFOLD LOUVRE INFILL OPTIONS
Full Range
90mm Midi Louvres - hand adjustable
90mm Midi Louvre

90mm Midi Louvre

The 90mm Midi Louvre is the smallest louvre in this range.
150mm Midi Louvres
150mm Midi Louvre

150mm Midi Louvre

A highly versatile, mid-sized Louvre.
95 Bella Vista Lite Louvres
95 Bella Vista Louvre

95 Bella Vista Louvre

Introducing our smallest Rectangular Sun Louvre.
95 Bella Vista Heavy as a Slider
95 Bella Vista Heavy Louvre

95 Bella Vista Heavy Louvre

Bella Vista's Heavy Duty Louvre is perfect for larger, exposed sites and is Hand Operable.
120 airfoil
120mm Airfoil Louvre

120mm Airfoil Louvre

One of our most specified Airfoil Louvres
125 Weatherboards
125 Weatherboard Panel

125 Weatherboard Panel

Aluminum Weatherboard-look Louvres that are 125mm wide bringing a sleek & modern design.
Helena Bay
150 Helena Bay Louvre

150 Helena Bay Louvre

With excellent spanning capabilities, the 150 Helena Bay Louvre is designed to be End Fixed or Bracket Fixed.
  • Coastal 100 Bifolds are top hung
  • Maximum panel size 3300mm (h) x 900mm (w)
  • View Full Range tab to view compatible louvre infills for Bifold doors
  • These Louvre infills for Coastal Bifold Doors can be Hand Operable (90mm Midi, 150mm Midi, 95 Bella Vista, 95 Bella Vista Heavy Louvres)
  • These Louvre infills for Coastal Bifold Doors can be End Fixed (90mm Midi, 150mm Midi, 95 Bella Vista, 95 Bella Vista Heavy, 120 Airfoil, 125 Weatherboard, 150 Helena Bay Louvres)
  • Transom is standard
  • Made of aluminium
  • Made for coastal living
  • Durable
  • Available in many powdercoat colours
  • Available in anodised finishes
  • Available in wood grain finishes and other special finishes
  • Engineered
  • Warranty
  • Creates a fine line between indoor and outdoor
  • Privacy and weather protection
  • Stylish good looks!
Frequently Asked Questions
What are Coastal 100 Bi-Fold Doors?
Coastal 100 Bi-Fold Doors are aluminium folding door systems designed to connect indoor and outdoor spaces. The panels fold and stack neatly to one side. This helps maximise the clear opening of the room.
What is the key benefit of a bi-fold door system?
Bi-fold doors create large and uninterrupted openings. When you open them, the panels fold back compactly. This supports a better flow between your interior and exterior spaces.
Where are Coastal 100 Bi-Fold Doors typically used?
These doors link interior living areas with decks, patios, or courtyards. Suitability depends on the design and the layout of your opening.
What material are Coastal 100 Bi-Fold Doors made from?
Coastal 100 Bi-Fold Doors consist of high-grade aluminium. This material offers significant strength. It remains lightweight to ensure a smooth folding operation.
Do Coastal 100 Bi-Fold Doors stack neatly when opened?
Yes. The panels fold and stack to the side. This reduces obstruction and preserves the usable space within the opening.
What makes the Coastal 100 series distinct?
The Coastal 100 series is a heavier duty bi-fold door system. It supports wider spans and larger openings. The design focuses on frequent use and durability.
How does the Coastal 100 series handle coastal environments?
We construct these systems from 300-series stainless steel and 316 marine-grade die-cast components. These materials provide maximum resistance to salt air and corrosion.
Can these doors be customised to match a specific architectural style?
Yes. We offer a wide range of powder coat colours and anodised finishes. You can select a look that integrates perfectly with your existing joinery. Custom wood grain finishes are also available.
